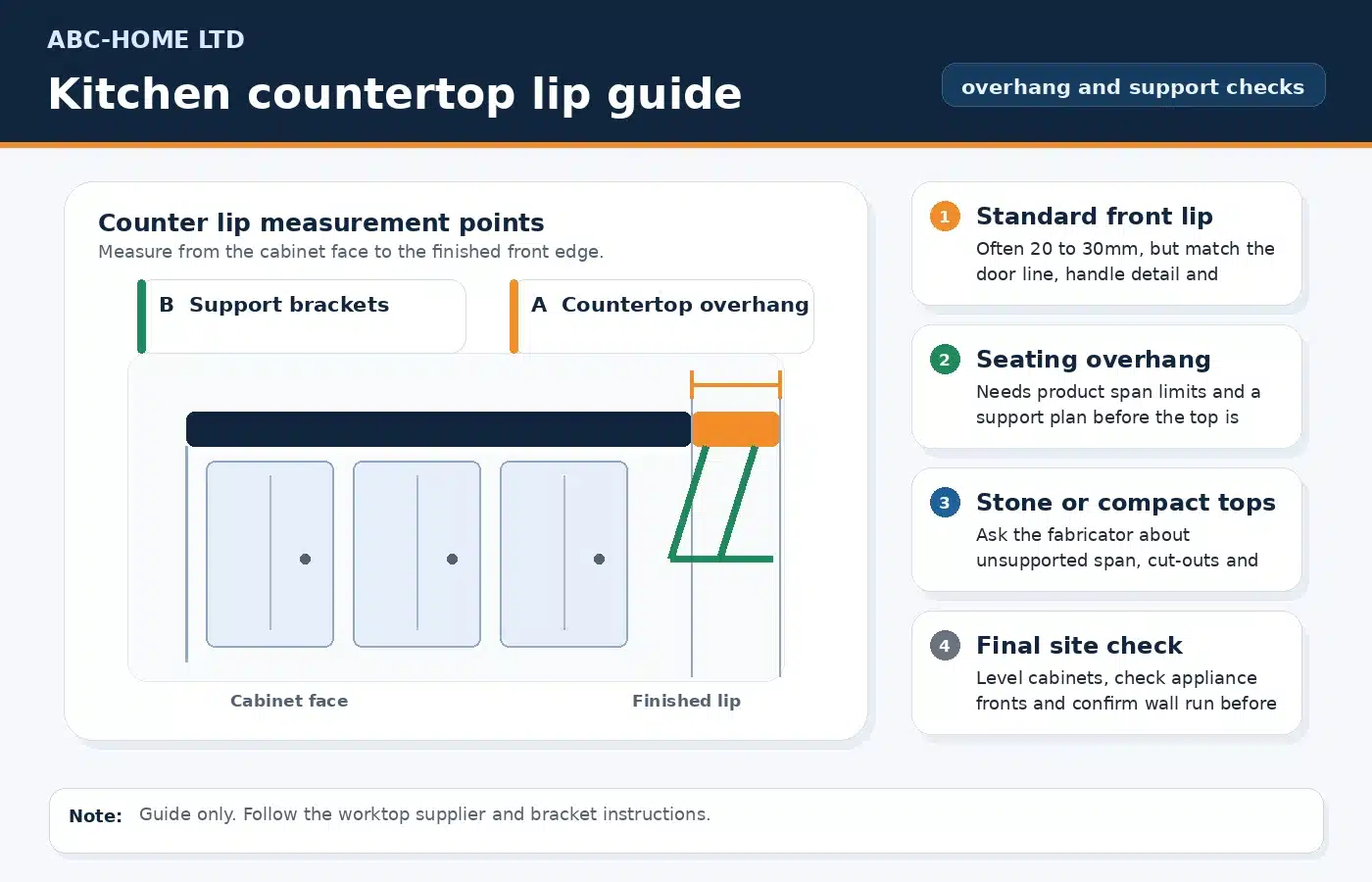

Quick answer: a normal front countertop lip is often about 20 to 30mm, but a larger countertop overhang for stools, end panels or an island must be checked against the worktop material, cabinet fixing and support brackets. This Kitchen countertop lip guide gives practical checks before ABC Home measures for kitchen fitting in Aberdeen.
The safe overhang is not one number for every kitchen. Laminate, timber, compact laminate, quartz, porcelain and solid surface tops all behave differently. The answer also changes when there is a sink cut-out, hob cut-out, joint, corner, waterfall end or appliance door below the lip.
Countertop overhang planning table
| Countertop detail | Typical planning note | What to check before fitting |
|---|---|---|
| Standard front lip | Often about 20 to 30mm past the cabinet or door face | Door thickness, handle projection, drip groove, end panel line and appliance fronts. |
| Flush or near-flush modern edge | Small lip for a cleaner handleless look | Door swing, drawer pulls, finger rails and whether a tiny overhang will expose uneven cabinet lines. |
| Breakfast bar or seating edge | Can be much deeper than a normal lip | Material span, knee space, support brackets, hidden plates, panels or legs. |
| Island side overhang | Often used for stools or visual balance | Whether the overhang sits near a sink, hob, joint or unsupported corner. |
| Stone, porcelain or compact tops | Needs supplier limits rather than a generic rule | Fabricator span table, worktop thickness, cut-outs, edge profile and fixing method. |
| Timber or laminate tops | More forgiving, but still needs support where deep | Moisture sealing, bracket spacing, screw length and movement allowance. |
Countertop lip checker
Use this quick checker to flag when a countertop overhang needs a support decision before fitting. It is a planning aid, not a substitute for the worktop supplier or fabricator instructions.
Practical fitting checklist
- Measure from the cabinet face. Do not measure from the wall if the cabinets are not perfectly straight.
- Check doors and drawers. The lip should not clash with handles, integrated appliance doors or finger-pull rails.
- Plan support before ordering. Support brackets, panels, legs or hidden steel should be agreed before the template visit.
- Watch cut-outs. Sinks, hobs and pop-up sockets can weaken the area near an overhang.
- Check the end panels. The neatest lip is usually the one that lines up with visible panels and tall housings.
- Confirm the edge detail. A thick built-up edge can change how far the lip looks and how it is fixed.
When support brackets matter
Support brackets matter whenever the top projects far enough to be loaded by leaning, sitting, cooking equipment or everyday knocks. A bracket is not only about stopping a dramatic failure. It also helps stop flex, cracked joints, loose fixings and stress around cut-outs.
Hidden brackets can look cleaner, but they still need a strong fixing point. A plasterboard partition, thin decor panel or weak cabinet side may not be enough. If the lip is part of an island or peninsula, plan support with the cabinet layout rather than adding it after the worktop is made.
Source note
This guide is based on practical fitting checks. Final limits should come from the worktop manufacturer’s installation manual, the fabricator’s span guidance, bracket supplier instructions and the measured site condition. If those sources disagree, use the stricter instruction and ask for written confirmation before cutting or fixing.
FAQ
How much should a kitchen countertop overhang?
A small front lip is often around 20 to 30mm, but deeper seating overhangs need a material and support check. There is no single safe number for every countertop.
When do I need support brackets under a countertop?
Use support brackets, panels, posts or a fabricator detail when the overhang is too deep for the material, when people will sit at it, or when a cut-out or joint reduces strength.
Can quartz or stone overhang without support?
Sometimes, but only within the fabricator’s span limits for that slab, thickness and layout. Check before the template visit, especially near sinks and hobs.
Should the countertop lip line up with doors or cabinets?
Usually it is set from the finished cabinet and door line, not from an uneven wall. The best detail also considers handles, end panels and appliance fronts.
If you want the worktop lip checked before ordering, ABC Home can help with kitchen fitting in Aberdeen.
